Deploying an ITS Warning System for No-Passing Zones on Two-Lane Rural Roads

Simple item page
dc.contributor.authorEl Zarif, Jamal A.en
dc.contributor.committeechairHobeika, Antoine G.en
dc.contributor.committeecochairRakha, Hesham A.en
dc.contributor.committeememberTrani, Antonio A.en
dc.contributor.committeememberKachroo, Pushkinen
dc.contributor.committeememberCollura, Johnen
dc.contributor.departmentCivil Engineeringen
dc.date.accessioned2014-03-14T20:13:43Zen
dc.date.adate2001-08-01en
dc.date.available2014-03-14T20:13:43Zen
dc.date.issued2001-06-28en
dc.date.rdate2002-08-01en
dc.date.sdate2001-07-03en
dc.description.abstractA new safety application, as part of ITS Advanced Rural Transportation System (ARTS), has been developed to be deployed on a two-lane rural road (Route 114), in Southwest Virginia. The route segment under study is subject to significant head-on accidents, as a result of two main conditions: 1- Illegal passing maneuvers crossing solid yellow line, and 2- A short passing sight distance due to the road vertical profile. The main objective of this research is to design a video detection-based warning system by installing an affordable and efficient system on the vertical crest curve on Route 114, capable of performing the following two main functions: 1.Detect vehicles that attempt to violate the no-passing zone restriction (i.e. when crossing into the opposing direction). 2.Warn the drivers violating the restriction in order to discourage them from continuing their maneuvers. System architecture as well as detailed system design was developed. A system simulation was conducted with the use of a special software program written with MATLAB. The simulation was applied for both "with" and "without" the system cases. The simulation runs showed that the system could virtually eliminate all head-on collisions, should violators obey the early warning messages displayed. Several sensitivity tests were made for different scenarios. Finally, the viability of the system was evaluated from economic point of view. The financial analysis revealed high economic indicators.en
dc.description.degreePh. D.en
dc.format.mimetypeapplication/pdfen
dc.identifier.otheretd-07032001-173252en
dc.identifier.sourceurlhttp://scholar.lib.vt.edu/theses/available/etd-07032001-173252/en
dc.identifier.urihttp://hdl.handle.net/10919/28195en
dc.language.isoenen
dc.publisherVirginia Techen
dc.relation.haspart15appendix.pdfen
dc.relation.haspart14references.pdfen
dc.relation.haspart13Chap10_conclusion.pdfen
dc.relation.haspart12Chap9_evaluation.pdfen
dc.relation.haspart08Chap5_geometric_Analysis.pdfen
dc.relation.haspart07Chap4_data_collection.pdfen
dc.relation.haspart06Chap3_methodology.pdfen
dc.relation.haspart05Chap2_literature_review.pdfen
dc.relation.haspart04Chap1_introduction.pdfen
dc.relation.haspart03table_of_content.pdfen
dc.relation.haspart02abstract.pdfen
dc.relation.haspart11Chap8_simulation.pdfen
dc.relation.haspart10Chap7_design.pdfen
dc.relation.haspart09Chap6_architecture.pdfen
dc.relation.haspart01title_page_ack.pdfen
dc.relation.haspart16vita.pdfen
dc.rightsIn Copyrighten
dc.rights.urihttp://rightsstatements.org/vocab/InC/1.0/en
dc.subjectDetection and warning systemen
dc.subjectARTSen
dc.subjectNo-passing zone violationsen
dc.subjectITSen
dc.subjectSimulationen
dc.subjectHead-on collisionsen
dc.titleDeploying an ITS Warning System for No-Passing Zones on Two-Lane Rural Roadsen
dc.typeDissertationen
dc.type.dcmitypeTexten
thesis.degree.disciplineCivil Engineeringen
thesis.degree.grantorVirginia Polytechnic Institute and State Universityen
thesis.degree.leveldoctoralen
thesis.degree.namePh. D.en

Files

Original bundle
Now showing 1 - 5 of 16
Thumbnail Image
Name:
01title_page_ack.pdf
Size:
16.4 KB
Format:
Adobe Portable Document Format
Download
Thumbnail Image
Name:

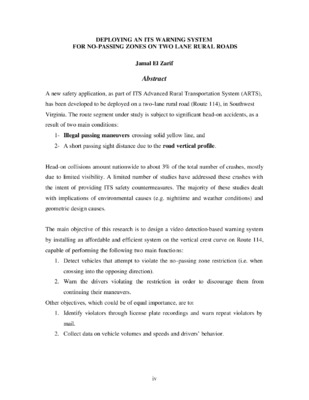

02abstract.pdf
Size:
11.14 KB
Format:
Adobe Portable Document Format
Download
Thumbnail Image
Name:
03table_of_content.pdf
Size:
23.4 KB
Format:
Adobe Portable Document Format
Download
Thumbnail Image
Name:
04Chap1_introduction.pdf
Size:
162.48 KB
Format:
Adobe Portable Document Format
Download
Thumbnail Image
Name:

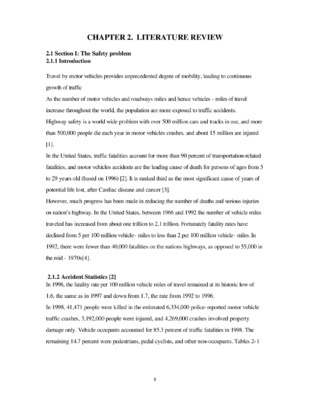

05Chap2_literature_review.pdf
