Solution Blow Spinning of High-Performance Submicron Polyvinylidene Fluoride Fibres: Computational Fluid Mechanics Modelling and Experimental Results

Simple item page
dc.contributor.authorAtif, Rasheeden
dc.contributor.authorCombrinck, Madeleineen
dc.contributor.authorKhaliq, Jibranen
dc.contributor.authorHassanin, Ahmed H.en
dc.contributor.authorShehata, Naderen
dc.contributor.authorElnabawy, Emanen
dc.contributor.authorShyha, Islamen
dc.date.accessioned2020-05-29T11:57:54Zen
dc.date.available2020-05-29T11:57:54Zen
dc.date.issued2020-05-16en
dc.date.updated2020-05-28T14:07:49Zen
dc.description.abstractComputational fluid dynamics (CFD) was used to investigate characteristics of high-speed air as it is expelled from a solution blow spinning (SBS) nozzle using a k-ε turbulence model. Air velocity, pressure, temperature, turbulent kinetic energy and density contours were generated and analysed in order to achieve an optimal attenuation force for fibre production. A bespoke convergent nozzle was used to produce polyvinylidene fluoride (PVDF) fibres at air pressures between 1 and 5 bar. The nozzle comprised of four parts: a polymer solution syringe holder, an air inlet, an air chamber, and a cap that covers the air chamber. A custom-built SBS setup was used to produce PVDF submicron fibres which were consequently analysed using scanning electron microscope (SEM) for their morphological features. Both theoretical and experimental observations showed that a higher air pressure (4 bar) is more suitable to achieve thin fibres of PVDF. However, fibre diameter increased at 5 bar and intertwined ropes of fibres were also observed.en
dc.description.versionPublished versionen
dc.format.mimetypeapplication/pdfen
dc.identifier.citationAtif, R.; Combrinck, M.; Khaliq, J.; Hassanin, A.H.; Shehata, N.; Elnabawy, E.; Shyha, I. Solution Blow Spinning of High-Performance Submicron Polyvinylidene Fluoride Fibres: Computational Fluid Mechanics Modelling and Experimental Results. Polymers 2020, 12, 1140.en
dc.identifier.doihttps://doi.org/10.3390/polym12051140en
dc.identifier.urihttp://hdl.handle.net/10919/98598en
dc.language.isoenen
dc.publisherMDPIen
dc.rightsCreative Commons Attribution 4.0 Internationalen
dc.rights.urihttp://creativecommons.org/licenses/by/4.0/en
dc.subjectCFDen
dc.subjectSBSen
dc.subjectnozzleen
dc.subjectPVDFen
dc.subjectfibresen
dc.titleSolution Blow Spinning of High-Performance Submicron Polyvinylidene Fluoride Fibres: Computational Fluid Mechanics Modelling and Experimental Resultsen
dc.title.serialPolymersen
dc.typeArticle - Refereeden
dc.type.dcmitypeTexten
dc.type.dcmitypeStillImageen

Files

Original bundle
Now showing 1 - 1 of 1

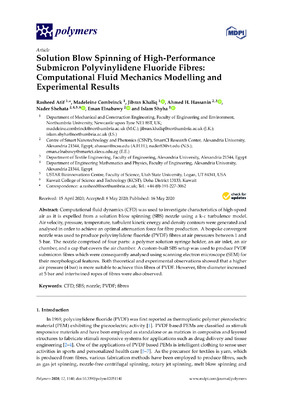

Thumbnail Image
