Charge distribution guided by grain crystallographic orientations in polycrystalline battery materials

Simple item page
dc.contributor.authorXu, Zhengruien
dc.contributor.authorJiang, Zhisenen
dc.contributor.authorKuai, Chunguangen
dc.contributor.authorXu, Rongen
dc.contributor.authorQin, Changdongen
dc.contributor.authorZhang, Yanen
dc.contributor.authorRahman, Muhammad Mominuren
dc.contributor.authorWei, Chenxien
dc.contributor.authorNordlund, Dennisen
dc.contributor.authorSun, Cheng-Junen
dc.contributor.authorXiao, Xianghuien
dc.contributor.authorDu, Xi-Wenen
dc.contributor.authorZhao, Kejieen
dc.contributor.authorYan, Pengfeien
dc.contributor.authorLiu, Yijinen
dc.contributor.authorLin, Fengen
dc.contributor.departmentChemistryen
dc.date.accessioned2020-05-27T14:02:20Zen
dc.date.available2020-05-27T14:02:20Zen
dc.date.issued2020-01-08en
dc.description.abstractArchitecting grain crystallographic orientation can modulate charge distribution and chemomechanical properties for enhancing the performance of polycrystalline battery materials. However, probing the interplay between charge distribution, grain crystallographic orientation, and performance remains a daunting challenge. Herein, we elucidate the spatially resolved charge distribution in lithium layered oxides with different grain crystallographic arrangements and establish a model to quantify their charge distributions. While the holistic "surface-to-bulk" charge distribution prevails in polycrystalline particles, the crystallographic orientation-guided redox reaction governs the charge distribution in the local charged nanodomains. Compared to the randomly oriented grains, the radially aligned grains exhibit a lower cell polarization and higher capacity retention upon battery cycling. The radially aligned grains create less tortuous lithium ion pathways, thus improving the charge homogeneity as statistically quantified from over 20 million nanodomains in polycrystalline particles. This study provides an improved understanding of the charge distribution and chemomechanical properties of polycrystalline battery materials.en
dc.description.notesThe work was supported by the National Science Foundation under contract DMR 1832613 and the Institute for Critical Technology and Applied Science at Virginia Tech. Use of the Stanford Synchrotron Radiation Lightsource, SLAC National Accelerator Laboratory, is supported by the U.S. Department of Energy, Office of Science, Office of Basic Energy Sciences under Contract No. DE-AC02-76SF00515. The engineering support from D. Van Campen, D. Day and V. Borzenets for the TXM experiment at beamline 6-2C of SSRL is gratefully acknowledged. This research used resources of the Advanced Photon Source, a U.S. Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02-06CH11357. Some of the NMC materials were produced at the U.S. Department of Energy's (DOE) CAMP (Cell Analysis, Modeling and Prototyping) Facility, Argonne National Laboratory. The CAMP Facility is fully supported by the DOE Vehicle Technologies Program (VTP) within the core funding of the Applied Battery Research (ABR) for Transportation Program. This research used 18-ID of the National Synchrotron Light Source II, a U.S. Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Brookhaven National Laboratory under Contract No. DE-SC0012704. The work done at Purdue University was supported by National Science Foundation under contract DMR 1832707. The authors acknowledge the support from Virginia Tech Open Access Subvention Fund.en
dc.description.sponsorshipNational Science FoundationNational Science Foundation (NSF) [DMR 1832707, DMR 1832613]; Institute for Critical Technology and Applied Science at Virginia Tech; U.S. Department of Energy, Office of Science, Office of Basic Energy SciencesUnited States Department of Energy (DOE) [DE-AC02-76SF00515]; DOE Office of ScienceUnited States Department of Energy (DOE) [DE-AC02-06CH11357, DE-SC0012704]; Applied Battery Research (ABR) for Transportation Program; Virginia Tech Open Access Subvention Fund; DOE Vehicle Technologies Program (VTP)United States Department of Energy (DOE)en
dc.format.mimetypeapplication/pdfen
dc.identifier.doihttps://doi.org/10.1038/s41467-019-13884-xen
dc.identifier.issn2041-1723en
dc.identifier.issue1en
dc.identifier.other83en
dc.identifier.pmid31913275en
dc.identifier.urihttp://hdl.handle.net/10919/98562en
dc.identifier.volume11en
dc.language.isoenen
dc.rightsCreative Commons Attribution 4.0 Internationalen
dc.rights.urihttp://creativecommons.org/licenses/by/4.0/en
dc.titleCharge distribution guided by grain crystallographic orientations in polycrystalline battery materialsen
dc.title.serialNature Communicationsen
dc.typeArticle - Refereeden
dc.type.dcmitypeTexten
dc.type.dcmitypeStillImageen

Files

Original bundle
Now showing 1 - 1 of 1
Thumbnail Image
Name:

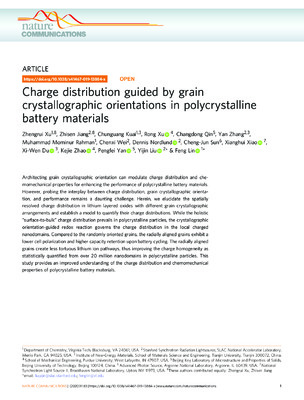

s41467-019-13884-x.pdf
